Solaris 11.3 Installation on Sparc T4-2 Server
I getting error while booting from Solaris 11 CD..
# init 0 (Get OK prompt)
OK> boot cdrom
Boot device: /pci@1e,600000/ide@d/disk@0,0:a File and args: device
can't open device
Warning: Fcode sequence resulted in a net stack depth change of 1 Evaluating:
Evaluating:
the file just loaded does not appear to be executable.
Solution:

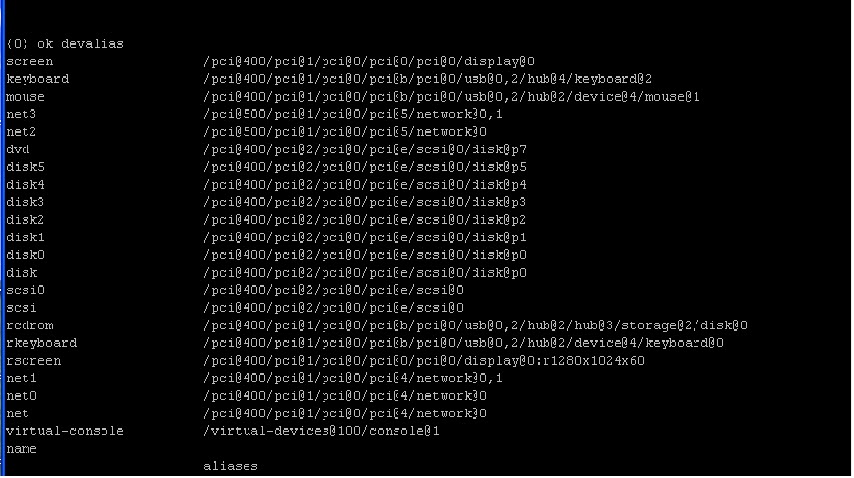

OK devalias
Select dvd option
OK> boot dvd
Please enter a number (1) 1
Create Raid 5 for data
#
zpool
create poolname raidz disk1 disk2 disk3
Example
# zpool create datapool
raidz c0t0d0 c0t1d0 c0t2d0 c0t3d0
Create file systems
/ora_dat
/ora_idx
/ora
/ssaerp
/ora_temp
# root@afi-drsvr:/ora_temp# zfs create datapool/backup2
# root@afi-drsvr:/ora_temp# zfs set mountpoint=/backup2 datapool/backup2
# root@afi-drsvr:/ora_temp# zfs list
NAME USED AVAIL REFER MOUNTPOINT
datapool 467K 1.60T 46.4K /datapool
datapool/backup2 44.9K 1.60T 44.9K /backup2
datapool/ora 44.9K 1.60T 44.9K /ora
datapool/ora_dat 44.9K 1.60T 44.9K /ora_dat
datapool/ora_idx 44.9K 1.60T 44.9K /ora_idx
datapool/ora_temp 44.9K 1.60T 44.9K /ora_temp
datapool/ssaerp 44.9K 1.60T 44.9K /ssaerp
rpool 73.0G 474G 73.5K /rpool
rpool/ROOT 3.11G 474G 31K legacy
rpool/ROOT/solaris 3.11G 474G 2.89G /
rpool/ROOT/solaris/var 224M 474G 221M /var
rpool/VARSHARE 2.53M 474G 2.44M /var/share
rpool/VARSHARE/pkg 63K 474G 32K /var/share/pkg
rpool/VARSHARE/pkg/repositories 31K 474G 31K /var/share/pkg/repo sitories
35 rpool/VARSHARE/zones 31K 474G 31K /system/zones
36 rpool/dump 65.8G 476G 63.8G -
37 rpool/export 97.5K 474G 32K /export
38 rpool/export/home 65.5K 474G 32K /export/home
39 rpool/export/home/admin 33.5K 474G 33.5K /export/home/admin
40 rpool/swap 4.13G 474G 4.00G -
root@afi-drsvr:/ora_temp#
Download from Oracle site Repository
https://www.oracle.com/solaris/solaris11/downloads/local-repository-downloads.html
Create folder....repo1
# root@afi-drsvr:/repo# ls
COPYRIGHT sol-11_3-repo_1of5.zip
install-repo.ksh sol-11_3-repo_2of5.zip
NOTICES sol-11_3-repo_3of5.zip
pkg5.repository sol-11_3-repo_4of5.zip
README-repo-iso.txt sol-11_3-repo_5of5.zip
README-zipped-repo.txt sol-11_3-repo_md5sums.txt
readme.txt
106 root@afi-drsvr:/repo# ls -l
107 total 16478173
108 -rw-r--r-- 1 admin staff 3440 Jul 13 14:52 COPYRIGHT
109 -rw-r--r-- 1 admin staff 11612 Jul 13 14:52 install-.zip
110 -rw-r--r-- 1 admin staff 1717187368 Jul 13 14:54 sol-11_3-repo_3of5.zip
111 -rw-r--r-- 1 admin staff 1871913207 Jul 13 14:55 sol-11_3-repo_4of5.zip
112 -rw-r--r-- 1 admin staff 1570373423 Jul 13 14:56 sol-11_3-repo_5of5.zip
113 -rw-r--r-- 1 admin staff 285 Jul 13 14:56 sol-11_3-repo_md5sums.txt
Extracting Repository of Solaris 11.3
root@afi-drsvr:/repo# ./install-repo.ksh -d /repo1/ -v
Using sol-11_3-repo download.
Uncompressing sol-11_3-repo_1of5.zip...done.
Uncompressing sol-11_3-repo_2of5.zip...done.
Uncompressing sol-11_3-repo_3of5.zip...done.
Uncompressing sol-11_3-repo_4of5.zip...done.
Uncompressing sol-11_3-repo_5of5.zip...done.
Repository can be found in /repo1/.
Initiating repository verification.
pkg://solaris/group/prerequisite/oracle/oracle-rdbms-server-12-1-preinstall 1442 pkg://solaris/system/domain-service-processor-protocol/sparc-enterprise 1774/548 pkg://solaris/consolidation/instantclient/instantclient-incorporation 3066/5480 pkg://solaris/group/prerequisite/oracle/oracle-ebs-server-R12-preinstall 3383/54 pkg://solaris/system/kernel/dynamic-reconfiguration/ultra-enterprise-10000 3911/ pkg://solaris/group/prerequisite/oracle/oracle-rdbms-server-12cR1-preinstall 416
Publish Repository on repo1 folder
Installing Repository
# pkg install solaris-desktop
For Xmanager Configuration to access solaris 11
# vi /etc/gdm/custom.conf
[xdmcp]
Enable=true (By default false)
# inetadm -e xvnc-inetd
# svcadm restart svc:/application/graphical-login/gdm:default
Root Access by default in Solaris 11
# vi /etc/ssh/sshd_config
PermitRootLgin Yes
# vi /etc/default/login
CONSOLE=/dev/Console
# svcadm restart svc:/network/ssh:default
Oracle Packages for installation oracle software
# pkg install pkg://solaris/developer/build/make
# pkg install pkg://solaris/developer/assembler
